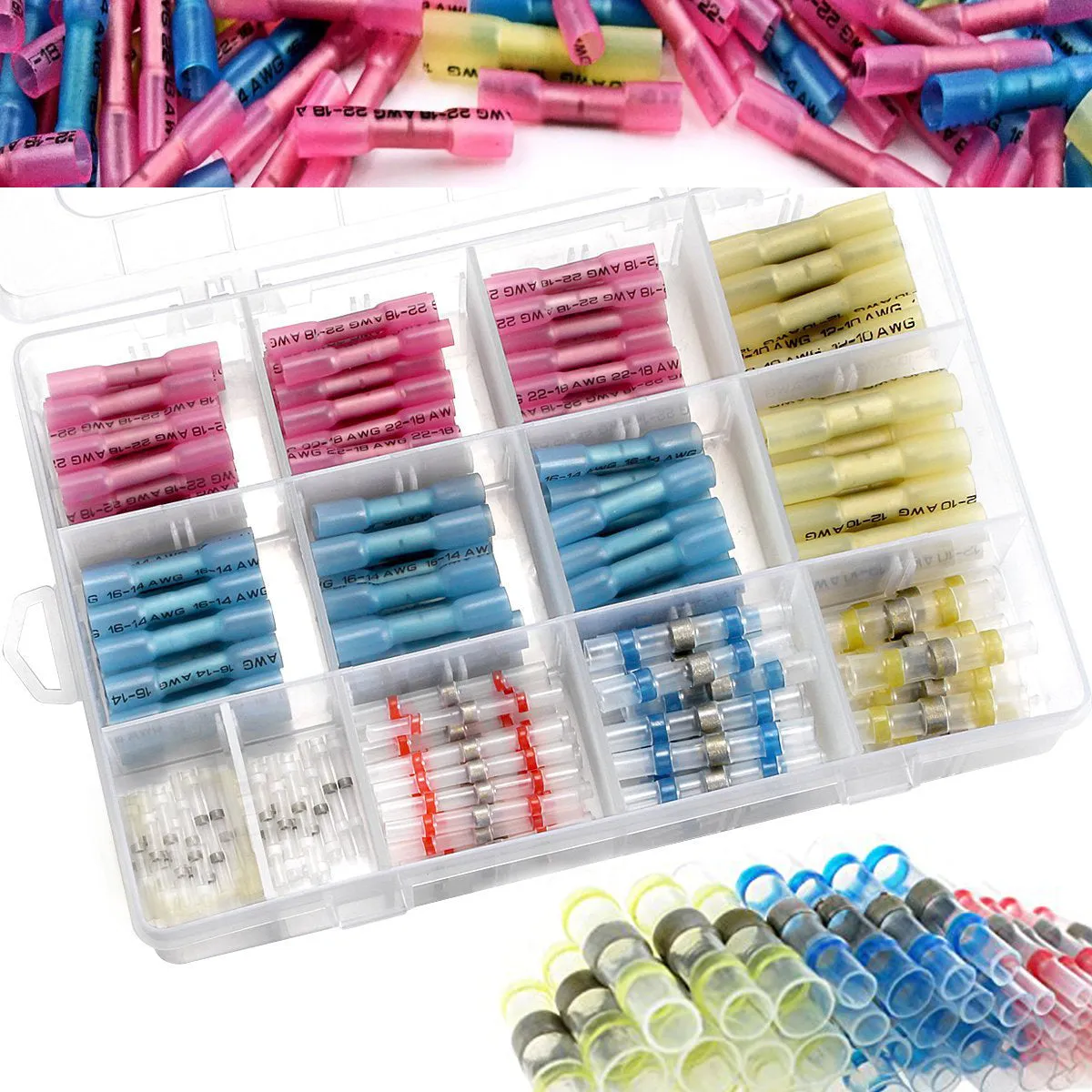

200 Pcs Solder Seal Butt Connectors & Heat Shrink Wire Terminals Kit 26-10 GA - #HSKIT-18330

PARTS NUMBER: HSKIT-18330

Part 1.

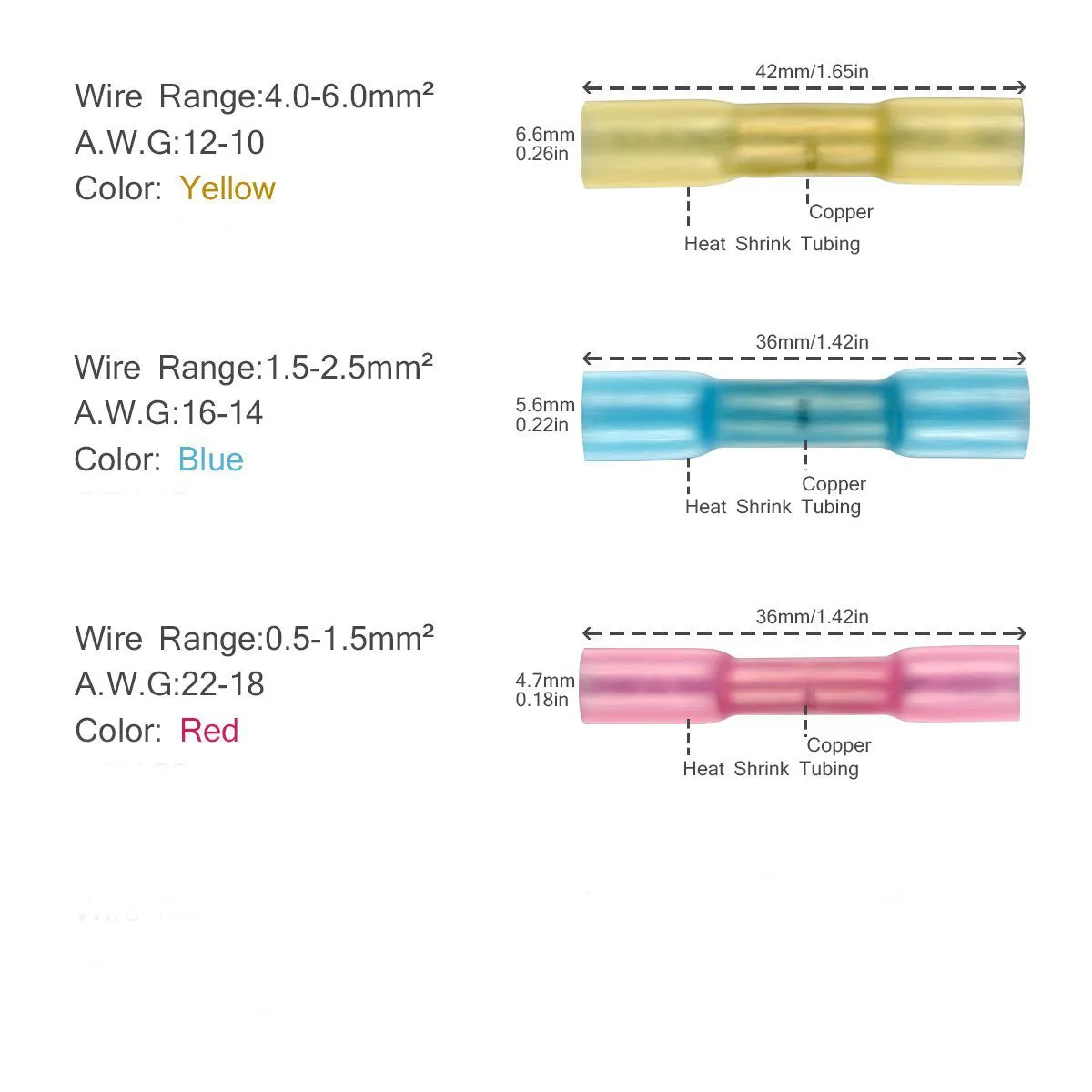

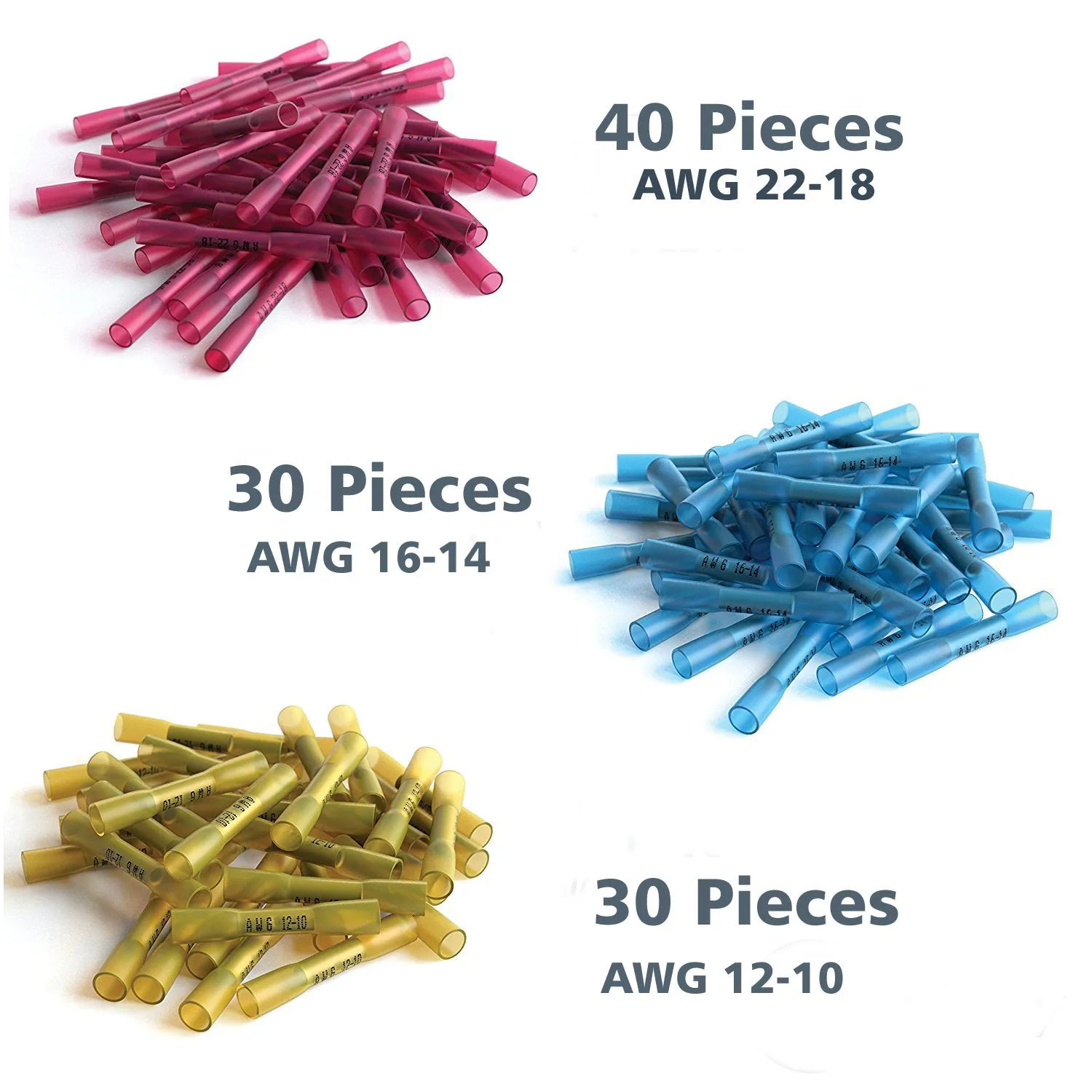

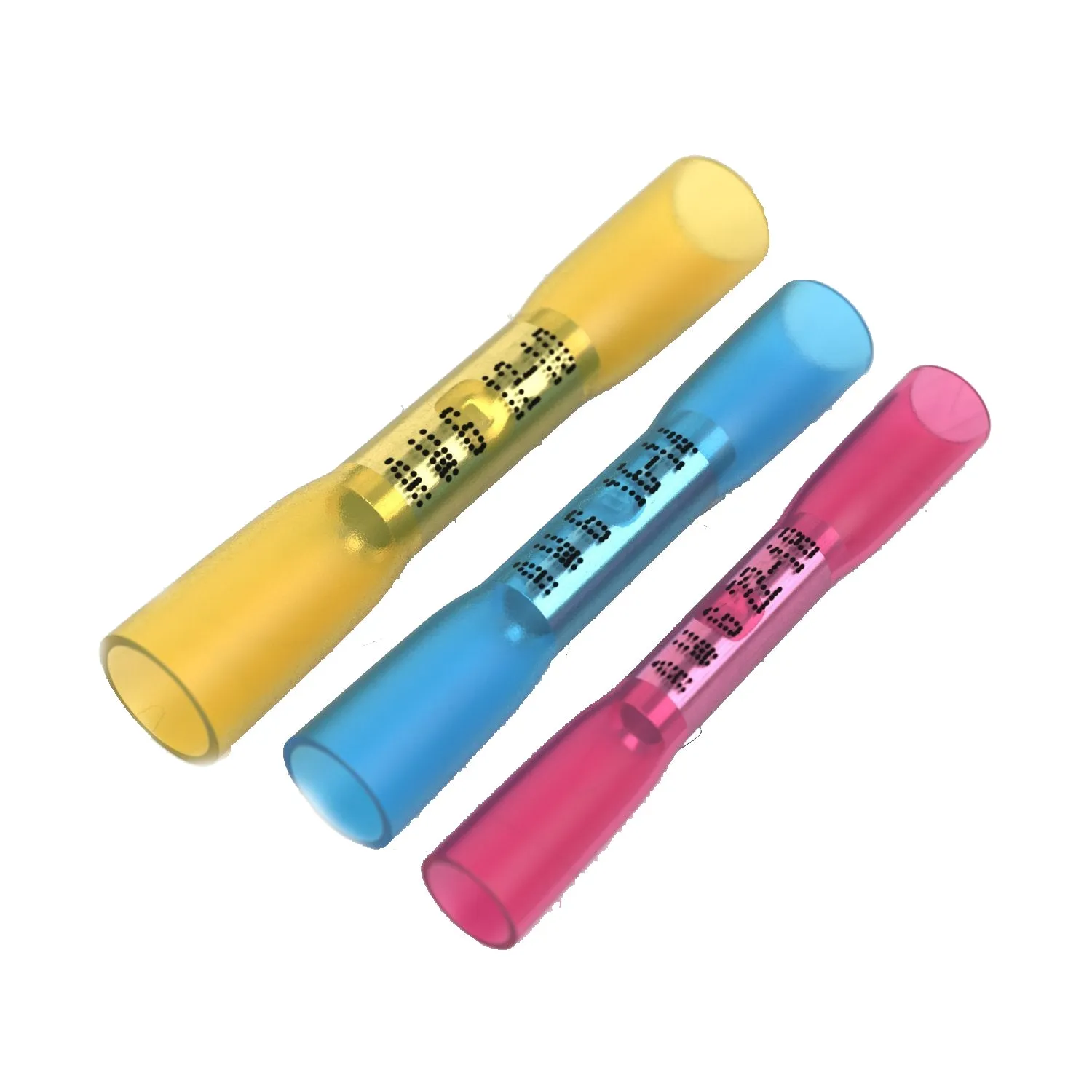

100pcs Heat Shrink Wire Terminals Kit Included:

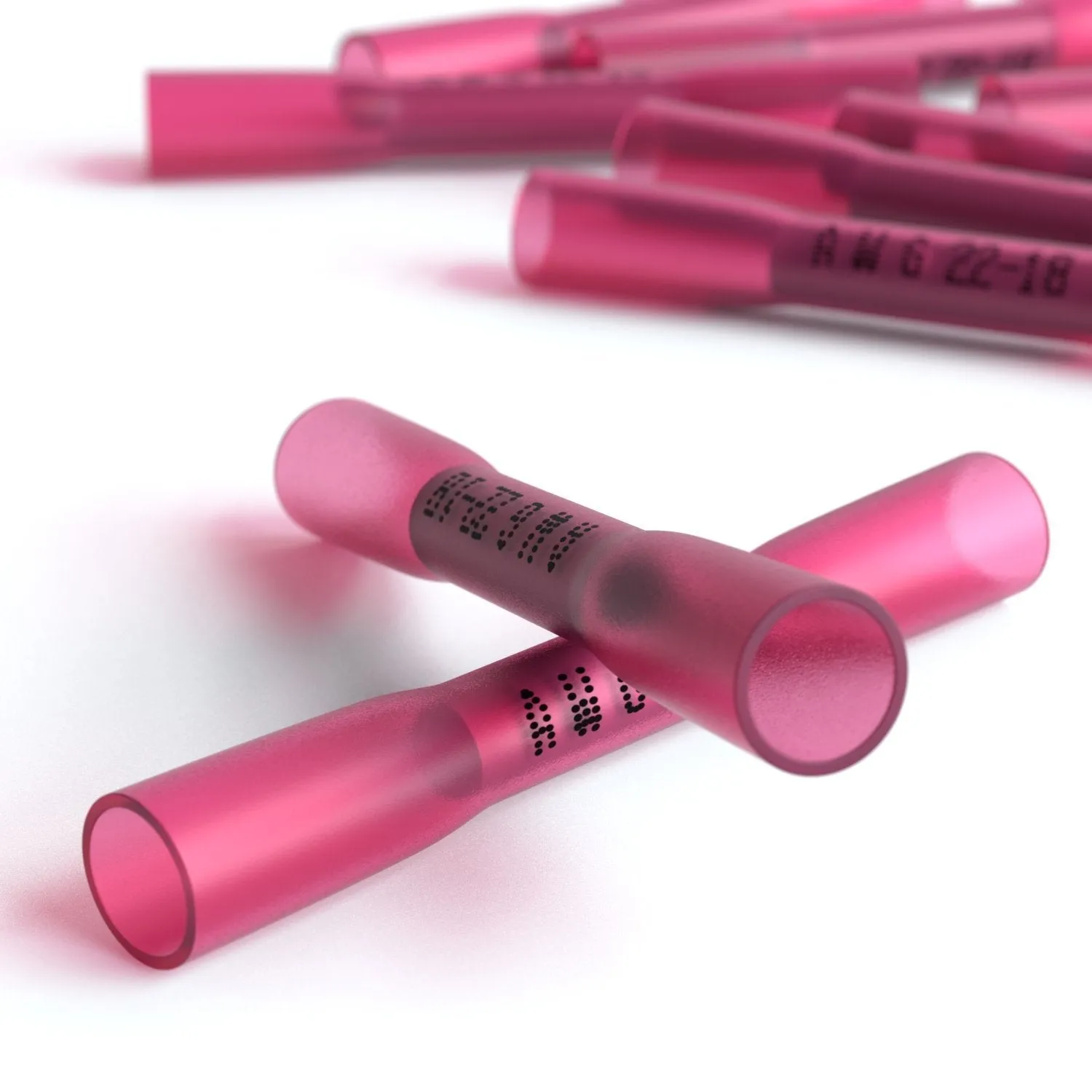

• 40pcs x 22-18 AWG - HSC-1 Red
• 30pcs x 16-14 AWG - HSC-2 Blue
• 30pcs x 12-10 AWG - HSC-3 Yellow

Notice:

For best results, please use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal.

Specifications:

• Shrinkage ratio 3:1
• Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive in inside
• Wire gauge imprint on connectors
• Minimum shrink temperature: 80°C
• No wire damage due to lower shrink temperature
• Full recovery temperature: 130°C
• Operating temperature: from -55°C to 125°C
• Reusable case included

HOW TO USE:

1. Select heat shrink butt connector to suit wire size
2. Strip insulation to 8mm and insert into splice barrel
3. Crimp using the tool for pre-insulated connectors
4. Apply heat to the butt connector until tubing recovers, and adhesive flows from connector ends
5. For best results use a hot air gun and apply heat evenly until connector reduces in size, and the adhesive flows, filling gaps within the terminal

------------------------------------------------------------------------------------------------------------

Part 2.

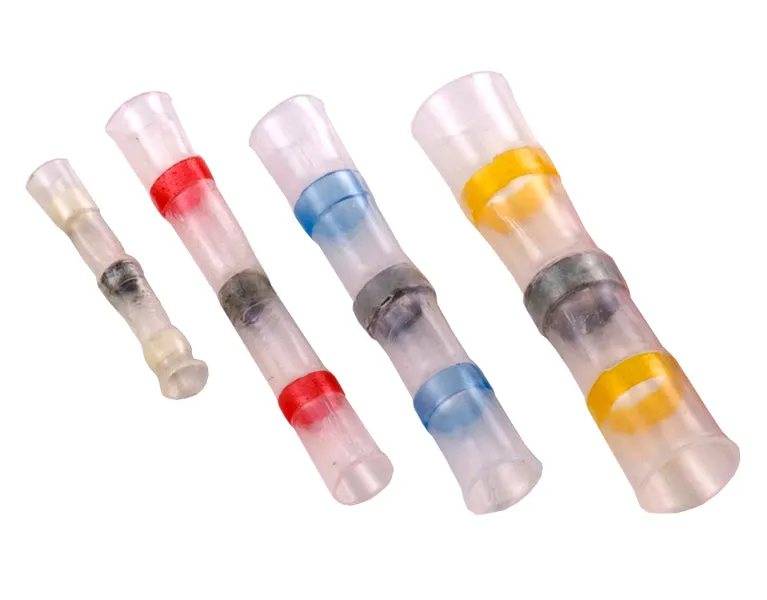

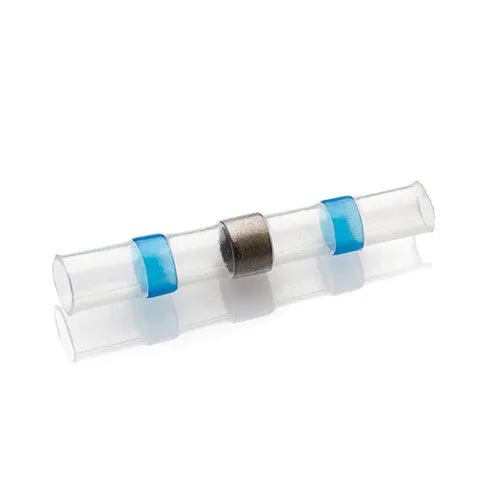

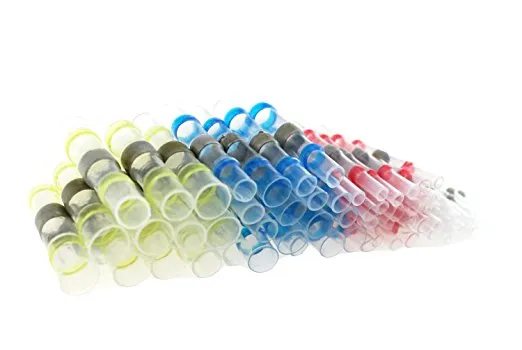

100pcs Solder Seal Heat Shrink Butt Wire Connector Terminals Copper

• An easy one step connection of wires, soldered, insulated and sealed
• Can be ideal use in marine and automobile applications
• Polyolefin tubing in outside and hot melt adhesive in inside
• Solder and seal and with advanced waterproof function
• Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation

Specification:

Insulation: PE

Plating: Tin

Terminal Body: Copper

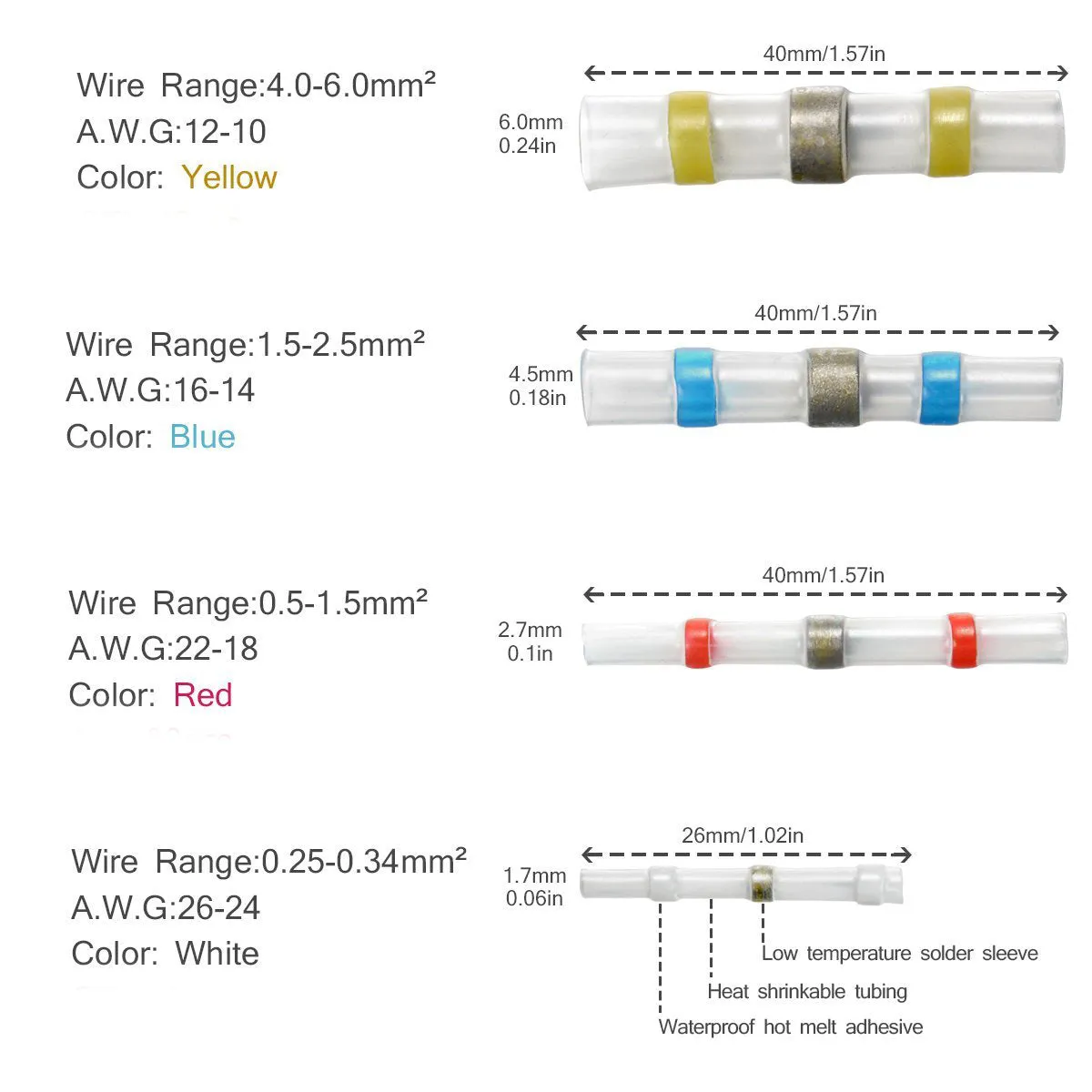

Color: Red, Blue, Yellow, White

• 30pcs x Red Shrink Connectors: Diameter 3.0 mm, Cable cross-section 0.5-1.0mm2 22-18AWG
• 30pcs x Blue Shrink Connectors: Diameter 5.0mm, Cable cross-section 1.5-2.5mm2 16-14AWG
• 30pcs x Yellow Shrink Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0mm2 12-10AWG
• 10pcs x White Shrink Connectors: Diameter 1.5 mm, Cable cross-section 0.25-0.34mm2 26-24AWG
